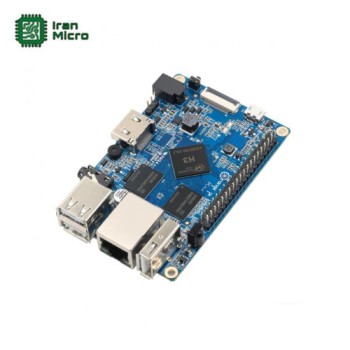

The Orange Pi PC H3 Quad-core Development Board is a powerful, compact
single-board computer equipped with a Quad-core Cortex-A7 CPU, Mali 400MP2 GPU,
and 1GB of DDR3 RAM. Designed as a low-cost, open-source alternative to
Raspberry Pi, this versatile board supports multiple operating systems,
including Android, Ubuntu, Debian, and Raspbian. It is ideal for educational
projects, IoT applications, gaming, and multimedia tasks. With a range of
connectivity options like HDMI, USB, Ethernet, and GPIO pins, the Orange Pi PC
offers a robust platform for developers, makers, and hobbyists to explore and
create innovative solutions.
Specifications of Orange Pi PC H3 Quad-core Development Board
CPU: H3 Quad-core Cortex-A7 H.265/HEVC 4K
GPU: Mali 400MP2 @600MHz, Supports OpenGL ES 2.0
Memory: 1GB DDR3 SDRAM (shared with GPU)
Onboard Storage: TF card slot (Max. 32GB) / MMC card slot
Onboard Network: 10/100M Ethernet RJ45
Video Input: CSI input connector, supports up to 1080p@30fps video capture
Audio Input: Microphone
Video Output: HDMI output, CVBS, supports simultaneous HDMI and CVBS output
Audio Output: 3.5mm jack and HDMI
Power Source: 5V DC input, 2A current (via DC4 1.7mm port)
USB Ports: Three USB 2.0 HOST, one USB 2.0 OTG
Buttons: Power Button (SW4)
Low-level Peripherals: 40-pin header compatible with Raspberry Pi B+, GPIO,
UART, and ground pins
LED: Power LED & Status LED
Supported OS: Android, Ubuntu, Debian, Raspbian
Dimensions: 85mm x 55mm
How to Use of Orange Pi PC H3 Quad-core Development Board
Power the board using a 5V DC 2A adapter through the DC4 1.7mm port.
Install your preferred operating system (Android, Ubuntu, Debian, or Raspbian)
on a TF or MMC card and insert it into the onboard slot.
Use the HDMI port to connect to a display, and USB ports for keyboard, mouse, or
other peripherals.
Access GPIO pins for developing projects with sensors, motors, and other
hardware.
برد اورنج پای Orange Pi PC H3 با رم 1GB
- تولید کننده: China - A
- دسته بندی ها:
- - اورنج پای (Orange Pi) و شیلد های آن
- کد محصول: RG_110_000000_000000_14638
- موجودی: 3
-
قیمت پایه : 44,080,000ریال
