Description
6-35V QC4.0 PD3.0 USB Type-C Cellphone Fast Charge Board Support
The SW3518 Quick Charger Adapter Module is a component used in mobile phone charging systems, typically featuring different channel configurations to support various charging requirements.
2-Channel SW3518 Quick Charger Adapter Module
Functionality: Features two output channels, allowing for simultaneous charging of two devices.
Use Case: Suitable for scenarios where you need to charge two devices at once, such as a phone and a tablet.
Output: Each channel typically provides a separate output, potentially with different current capabilities or charging profiles.
Input Voltage Range: 6V – 36VDC
Output Voltage Range: 5V – 20VDC (Input voltage must be higher than required output voltage)
Output Current (Max): 5A
Output Power (Max): 100W (5A @ 20V)
Conversion Efficiency: > 95%
Switching Frequency: 125kHz
Number of Output Ports: 2 (Supports dual port charging – both USB ports can be used simultaneously)
Protection: Input over-voltage and under-voltage protection / Output over-current protection / Short circuit protection / Over-temperature protection
Supported Protocols: BC1.2: Apple & Samsung / PPS; PD2.0; PD3.0 / Qualcomm: QC2.0; QC3.0; QC4.0; QC4.0+ / MTK: PE+1.1 & PE+2.0 / Huawei: FCP & SCP / Samsung: AFC / Spreadtrum: SFCP / OPPO: VOOC; DASH
Input Connector(s): Solder Terminals (Hole Diameter: ~1.7mm / Spacing: ~16.05mm)
Output Connector(s): USB Type-A Female Socket / USB Type-C Female Socket

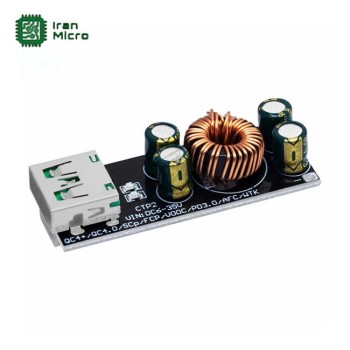

ماژول پاور بانک فست شارژ با 1 پورت تایپ سی - مدل SW3518 x1 PORT TYPE-C FAST CHARGE
- تولید کننده: China - A
- دسته بندی ها:
- - ماژول تغذیه ، مبدل ولتاژ و پاور بانک
- کد محصول: RG_110_000000_000000_14696
- موجودی: 20
-
قیمت پایه : 2,375,000ریال
ارسال رایگان سفارشات بالای 5 میلیون تومان
تعداد بازدید: 64
