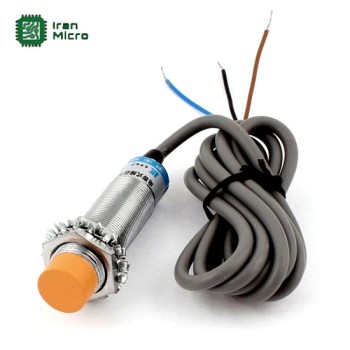

The LJC18A3 B Z AX is a reliable and versatile inductive proximity
sensor designed for accurate detection of metallic objects. It is widely used in
industrial automation and control systems, providing non-contact object
detection and proximity sensing capabilities. With its durable construction and
advanced features, the LJC18A3 B Z AX offers exceptional performance and
durability in demanding environments.
Featuring a compact and robust design, the LJC18A3 B Z AX is suitable for
installation in tight spaces and harsh industrial settings. Its cylindrical
shape and threaded body allow for easy integration into existing systems. The
sensor is housed in a durable metal enclosure that provides excellent protection
against dust, moisture, and mechanical stress, ensuring reliable operation over
an extended period.
The LJC18A3 B Z AX is equipped with a normally open (NC) output configuration,
making it compatible with a wide range of control systems, including
programmable logic controllers (PLCs) and microcontrollers. When a metallic
object enters its adjustable sensing range, the sensor generates a reliable
output signal, indicating the presence of the object.
Product Specifications:
Model: LJC18A3-B-Z/AX
Type: Inductive proximity sensor
Distance: 1-10mm
Output Configuration: Normally Close (NC)
Supply Voltage: 6–36V DC
Current Consumption: 10mA maximum
Switching Frequency: 1500 Hz
Response Time: 1ms
Operating Temperature: ‑25°C to 70°C
Housing Material: Metal
Connection Type: 3‑wire, 2‑meter cable
Dimensions: 18mm diameter, 70mm length (including cable)
Protection Rating: IP67 (dust-tight and water-resistant)
Certifications: CE, RoHS
سنسور (سوئیچ) مجاورت خازنی LJC18A3-B-Z/AX
- تولید کننده: China - A
- کد محصول: RG_110_000000_000000_14648
- موجودی: 30
-
قیمت پایه : 7,770,000ریال
ارسال رایگان سفارشات بالای 5 میلیون تومان
تعداد بازدید: 63
پرسش و پاسخ مشتریان
برچسب ها: سنسور (سوئیچ) مجاورت خازنی LJC-18A3-B-Z/AX, RG_110_000000_000000_14648
